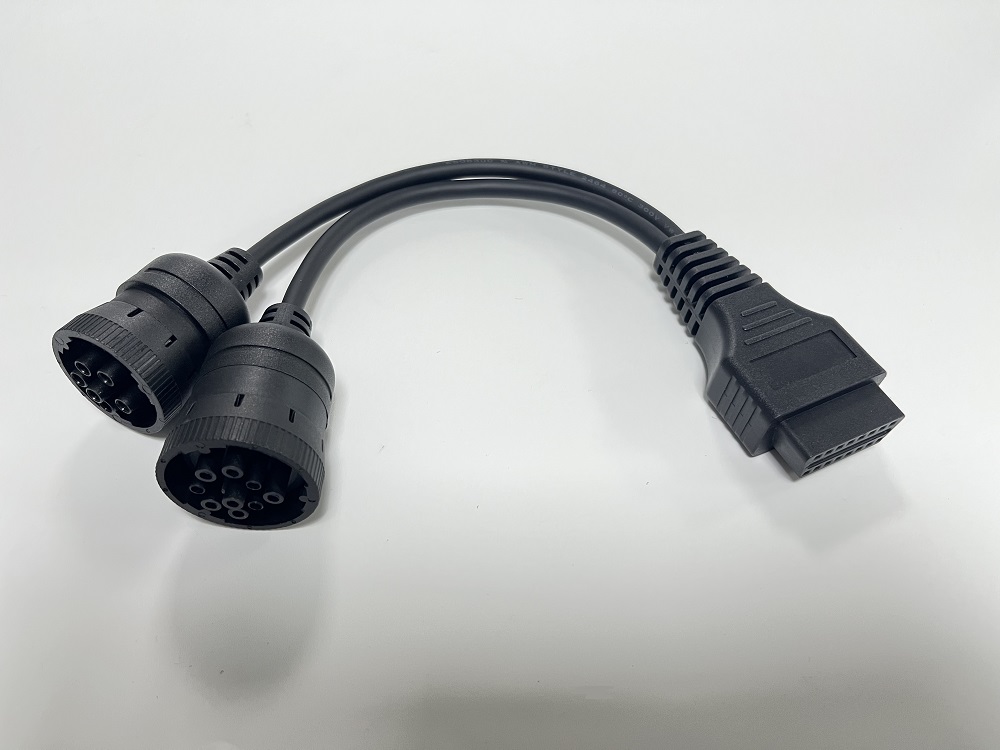

6+9Pin J1939 Diagnostic Cable for Newer Cummins ECU

The 6+9 Pin J1939 Diagnostic Cable is an essential interface tool designed for modern Cummins-equipped vehicles. This specialized cable combines the standard Cummins 9-pin Deutsch diagnostic connector with the industry-standard 6-pin J1939 data link connector (often a green or black Deutsch/DT type). This dual-connection design allows communication with the latest Cummins Transmission Control Units (TCUs) and Engine Control Modules (ECMs) that utilize the high-speed SAE J1939 CAN bus network. It provides a reliable, high-speed data bridge between the vehicle's diagnostic ports and a PC running Cummins INSITE™ or other compatible diagnostic software, enabling comprehensive diagnostics and programming for advanced powertrain systems.

Function

• Establish communication with Cummins TCUs and ECMs via J1939 CAN protocol.
• Read and clear transmission and engine fault codes from advanced systems.
• Perform TCU and ECM programming, flashing, and calibration updates.
• Monitor real-time live data streams from both engine and transmission networks.
• Support parameter adjustments and configuration for transmission control.
• Enable snapshot testing and system diagnostics on CAN-based networks.
• Interface with multiplexed vehicle systems for integrated troubleshooting.

Support Car Models

This cable is specifically designed for newer heavy-duty trucks and equipment featuring Cummins engines with J1939-compliant electronic systems. Primary support includes:

• **Freightliner Cascadia** (with newer Cummins X15, X12 engines)
• **Peterbilt Models 579, 567, 589** (with newer Cummins powertrains)
• **Kenworth T680, T880, W990** (with newer Cummins powertrains)
• **International LT Series, HV Series** (with Cummins engines)
• **Volvo VNL, VNR** (with Cummins engine options)
• **Mack Anthem** (with Cummins engine options)
• **Western Star 49X, 5700** (with Cummins engines)
• Newer buses, coaches, and industrial machinery equipped with Cummins **X-Series (X12, X15)**, **L9**, or **B6.7** engines and compatible Eaton, Allison, or Cummins Endurant transmissions with J1939 TCUs.

Note: Compatibility requires a 6-pin J1939 diagnostic port in the vehicle cab or dash, in addition to the traditional Cummins 9-pin engine port. Always verify software compatibility.
