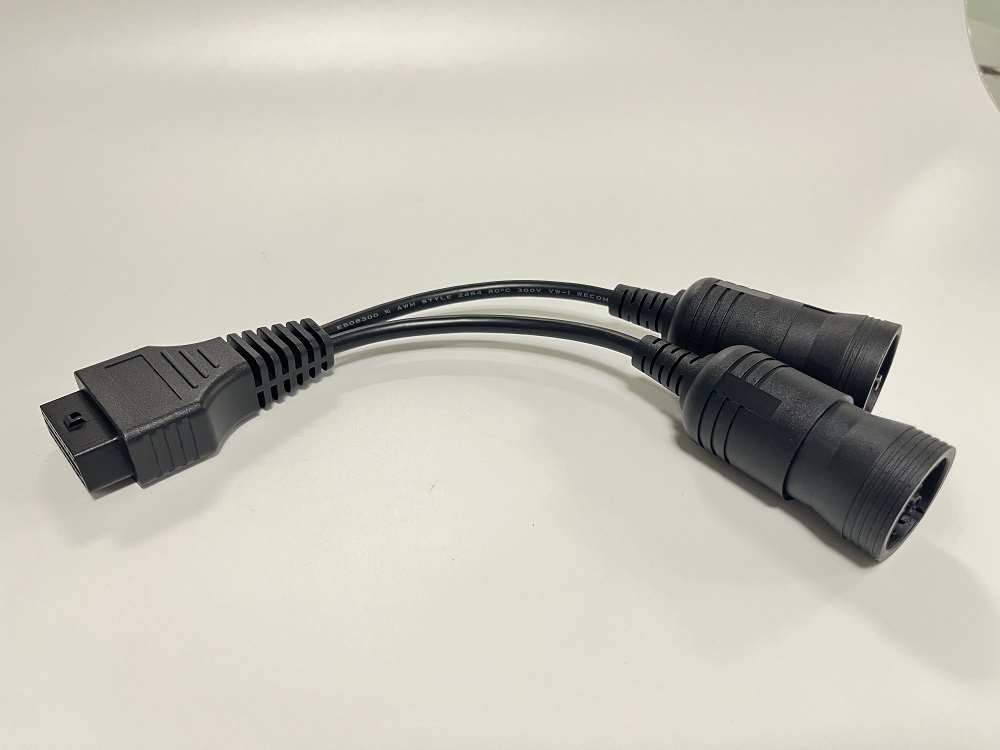

6+9 Pin J1939 Diagnostic Cable for Older Cummins ECU

The 6+9 Pin J1939 Diagnostic Cable is a versatile interface tool designed for bridging diagnostics between legacy and early CAN-based systems in older Cummins-powered vehicles. This cable connects the standard Cummins 9-pin Deutsch engine diagnostic port to a PC via a 6-pin J1939 adapter, enabling communication with Cummins ECUs that transitioned to or incorporated early SAE J1939 CAN network protocols. It is specifically engineered for models that predate modern high-speed multiplexing but still require CAN-capable diagnostics for the engine control unit. Built for durability, it ensures reliable connectivity for critical engine management tasks using Cummins INSITE™ and other period-correct diagnostic software.

Function

• Establish diagnostic communication with older Cummins ECUs using early J1939/ CAN protocols.
• Read and clear engine fault codes (DTCs) from transitional electronic systems.
• Perform basic ECU parameter programming and calibration updates (where supported).
• Monitor live engine data (RPM, oil pressure, coolant temp, fuel system) via CAN stream.
• Interface with engine-mounted sensors and actuators for system diagnostics.
• Provide a connection path for vehicles with both a 9-pin engine port and an early 6-pin data link.
• Support diagnostics for integrated engine brakes and early aftertreatment systems.

Support Car Models

This cable is compatible with a range of older heavy-duty trucks and equipment from the late 1990s through the 2000s, featuring Cummins engines with transitional electronic controls. Key supported models include:

• Freightliner: Classic (FLD), Century Class, Columbia (with Cummins ISM, ISL, ISC, ISX Signature/Plus)
• Peterbilt: Model 379, 378, 387 (with Cummins ISX, ISM, ISL engines)
• Kenworth: T800, W900, T600, T660 (with Cummins ISX, ISM engines)
• International: 9000 Series, 8000 Series, 7000 Series (with Cummins engines)
• Volvo Trucks: VN Series (with Cummins engine options)
• Mack Trucks: CHU, CL, MR (with Cummins engine options)
• Older school buses, coaches, and industrial machinery powered by Cummins ISM, ISL, ISC, ISX (Signature, Plus), and late N14 engines equipped with early electronic controls and a compatible 6-pin data link.

Important Note: This cable is intended for older electronic systems that utilize a combination of the 9-pin port and an early 6-pin J1939/CAN connection. Compatibility depends on the specific engine generation and software version. It is not typically used with pre-electronically controlled mechanical engines.
