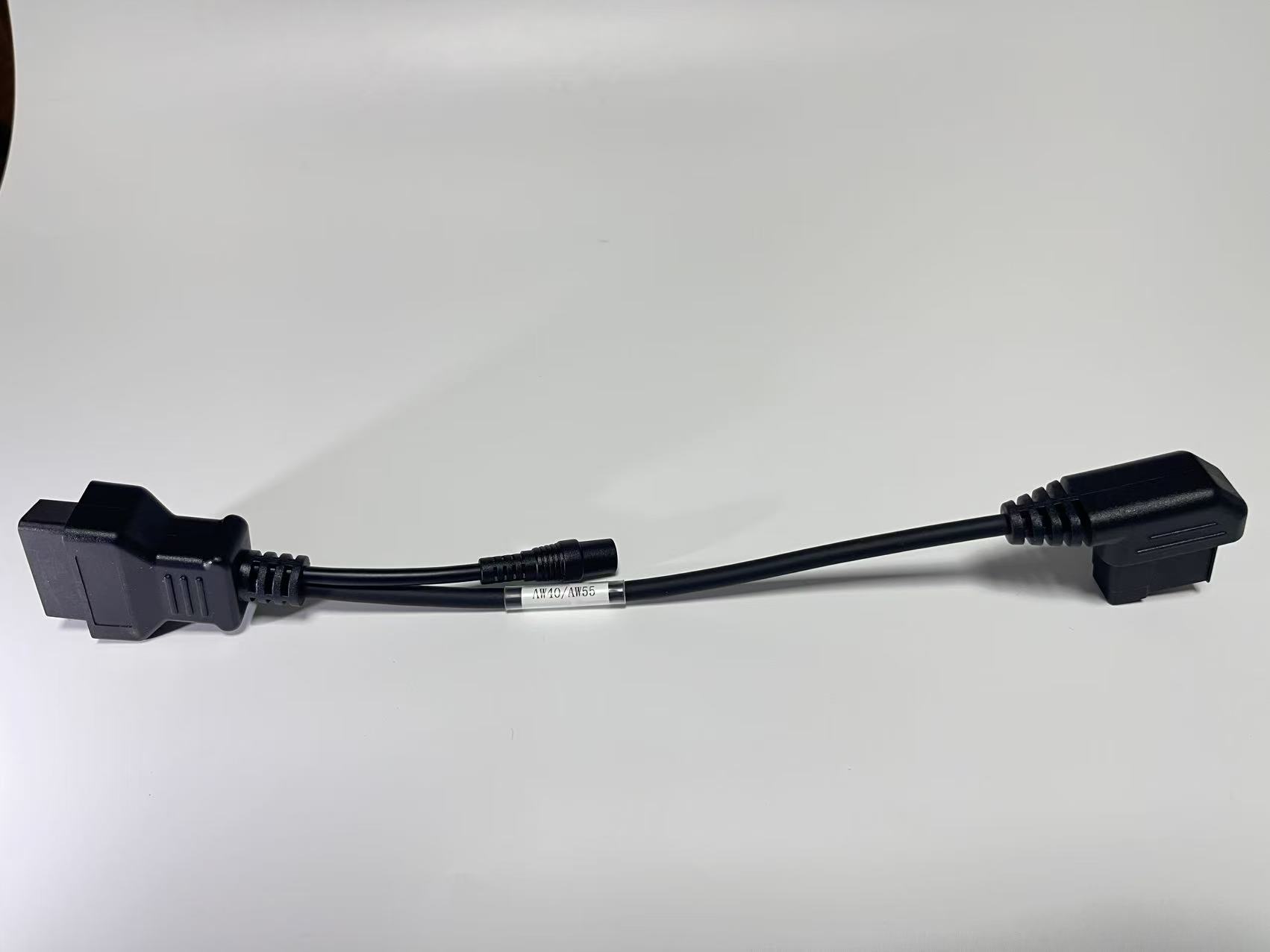

AW40/AW55 16-Pin TCU Cable for AISIN

The AW40/AW55 16-Pin TCU Cable is a specialized diagnostic and programming interface designed for AISIN Warner automatic transmissions. This robust cable connects directly between the Transmission Control Unit (TCU) and a compatible diagnostic tool or laptop software, enabling advanced-level communication for reading fault codes, monitoring live data, performing adaptations, and uploading new software. It is an essential tool for professional technicians and transmission specialists working on these complex gearboxes.

Function

This cable facilitates bidirectional communication with the transmission's internal computer. Key functions include:

• Reading and clearing diagnostic trouble codes (DTCs) from the TCU.
• Displaying and graphing real-time transmission parameters (e.g., solenoid activity, gear ratio, fluid temperature, pressure control).
• Performing adaptation resets and relearn procedures after transmission repairs or component replacement.
• Enabling software updates or TCU reprogramming with appropriate licensed software.
• Assisting in pinpointing electrical and hydraulic issues within the automatic transmission system.

Support Car Models

This cable is compatible with a wide range of vehicles equipped with the AISIN AW40 (also known as TF-80SC) or AW55 (series) automatic transmissions. Common supported models include, but are not limited to:

• Volvo: S40, V50, S60, V70, XC70, XC90 (models with AW55 or TF-80SC).
• Ford: Mondeo, S-MAX, Galaxy (models with Aisin gearbox).
• Land Rover: Freelander 2.
• Peugeot & Citroën: Various models using the TF-80SC transmission.
• Renault: Laguna, Vel Satis, Espace.
• Saab: 9-3, 9-5.
• Many other manufacturers, including Mazda, Jaguar, and Opel/Vauxhall on specific models.

Note: Compatibility is transmission-specific; always verify the transmission model in the vehicle.
