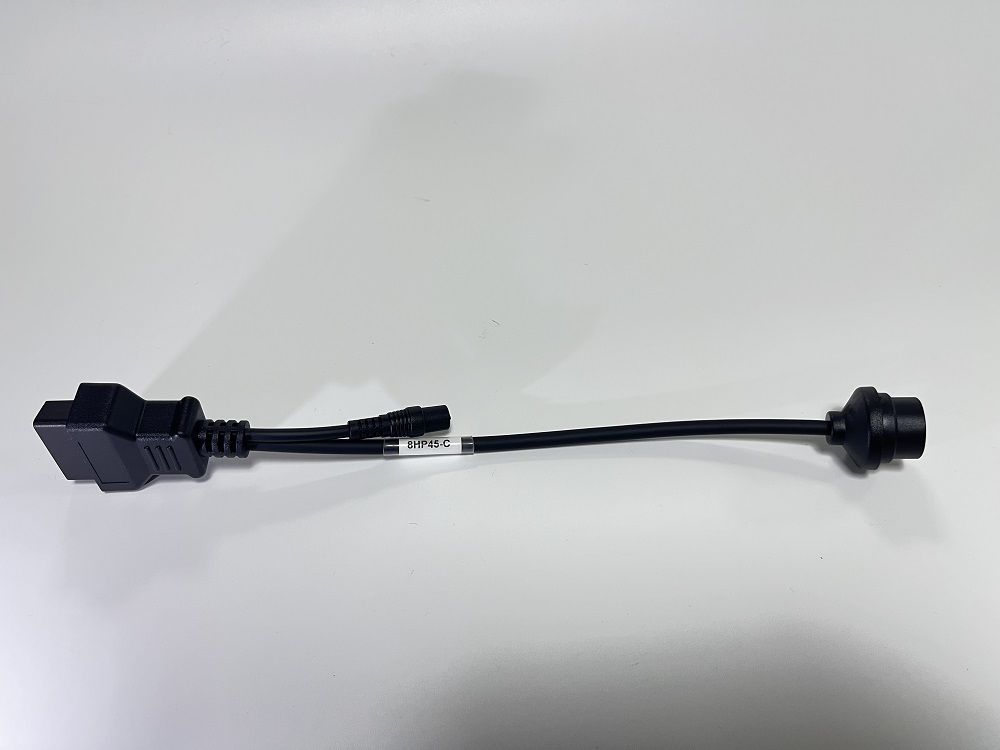

8HP45-C 16Pin TCU Cable for Temic/ZF
The 8HP45-C 16Pin TCU Cable is a professional-grade diagnostic and programming adapter specifically designed for the “C” generation (Gen 3) hardware of the ZF 8HP45 8-speed automatic transmission control units. Featuring a precise 16-pin connector, this cable interfaces directly with the latest Temic and ZF TCU boards on the workbench. Constructed with high-quality shielded wiring, it ensures stable, fast, and interference-free data transmission during critical bench operations. This cable is an indispensable tool for automatic transmission specialists, ECU programmers, and automotive locksmiths who need to perform offline diagnostics, mechatronics repairs, or module replacements on the newest 8HP45 hardware without requiring access to the vehicle's OBD2 port.
Function
- Enables direct reading and clearing of transmission diagnostic trouble codes (DTCs) on the bench.
- Facilitates offline TCU programming, EEPROM reading/writing, and flash software updates.
- Supports TCU module cloning, data backup, and virginizing for seamless unit replacements.
- Performs transmission adaptation resets and clutch learning parameter procedures.
- Allows for solenoid actuation testing and advanced mechatronics diagnostics independent of the vehicle.
Supported Car Models
Compatible with a wide range of vehicle brands utilizing the ZF 8HP45-C (Gen 3 / C-Hardware revision) 8-speed automatic transmission with Temic/ZF controllers, including but not limited to:
- BMW: 1 Series (F20/F21 LCI2), 3 Series (F30/F31/F34/F35 LCI2), 4 Series (F32/F33/F36 LCI2), 5 Series (F10/F11 LCI2), X1 (F48), X3 (F25 LCI2), X4 (F26 LCI), X5 (F15), X6 (F16)
- Audi: A4 (B8.5 late models), A5 (late Facelift), A6 (C7.5), A7, Q5 (late Facelift)
- Land Rover: Range Rover Evoque (L538 late models), Discovery Sport (L550), Range Rover Sport (L494), Discovery 5
- Jaguar: XE (X760), XF (X260), XJ (X351 late models), F-Pace, E-Pace
- FCA (Jeep/Dodge/Chrysler): Jeep Grand Cherokee (late 2015+), Dodge Charger, Dodge Challenger, Chrysler 300
- Volkswagen: Touareg (7P late models)
- Maserati: Ghibli (M157 late models), Quattroporte (M156 late models)
