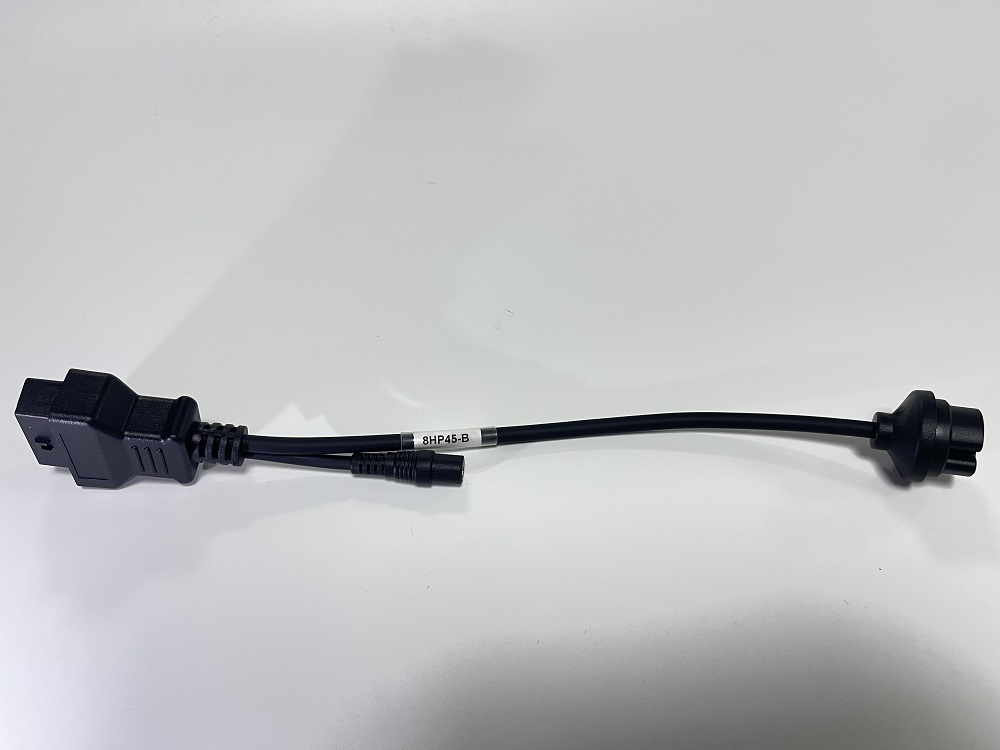

8HP45-B 16Pin TCU Cable for Temic/ZF
The 8HP45-B 16Pin TCU Cable is a professional-grade diagnostic and programming adapter specifically designed for the “B” generation hardware of the ZF 8HP45 8-speed automatic transmission control units. Featuring a precise 16-pin connector, this cable interfaces directly with Temic and ZF TCU boards on the workbench. Constructed with high-quality shielded wiring, it ensures stable, fast, and interference-free data transmission during critical operations. This cable is an indispensable tool for automatic transmission specialists, ECU programmers, and automotive locksmiths who need to perform offline diagnostics, mechatronics repairs, or module replacements without requiring access to the vehicle's OBD2 port.
Function
- Enables direct reading and clearing of transmission diagnostic trouble codes (DTCs) on the bench.
- Facilitates offline TCU programming, EEPROM reading/writing, and flash software updates.
- Supports TCU module cloning, data backup, and virginizing for seamless unit replacements.
- Performs transmission adaptation resets and clutch learning parameter procedures.
- Allows for solenoid actuation testing and advanced mechatronics diagnostics independent of the vehicle.
Supported Car Models
Compatible with a wide range of vehicle brands utilizing the ZF 8HP45-B (Gen 2 / LCI hardware revision) 8-speed automatic transmission with Temic/ZF controllers, including but not limited to:
- BMW: 1 Series (F20/F21 LCI), 3 Series (F30/F31/F34/F35 LCI), 4 Series (F32/F33/F36 LCI), 5 Series (F10/F11 LCI), X3 (F25 LCI), X4 (F26), X5 (F15), X6 (F16)
- Audi: A4 (B8.5), A5 (Facelift), A6 (C7), A7, Q5 (Facelift)
- Land Rover: Range Rover Evoque (L538), Range Rover Sport (L494), Discovery Sport (L550), Discovery 5
- Jaguar: XF (X250 LCI), XJ (X351), F-Pace, E-Pace
- FCA (Jeep/Dodge/Chrysler): Jeep Grand Cherokee, Dodge Charger, Dodge Challenger, Chrysler 300
- Volkswagen: Touareg (7P)
- Maserati: Ghibli (M157), Quattroporte (M156)
