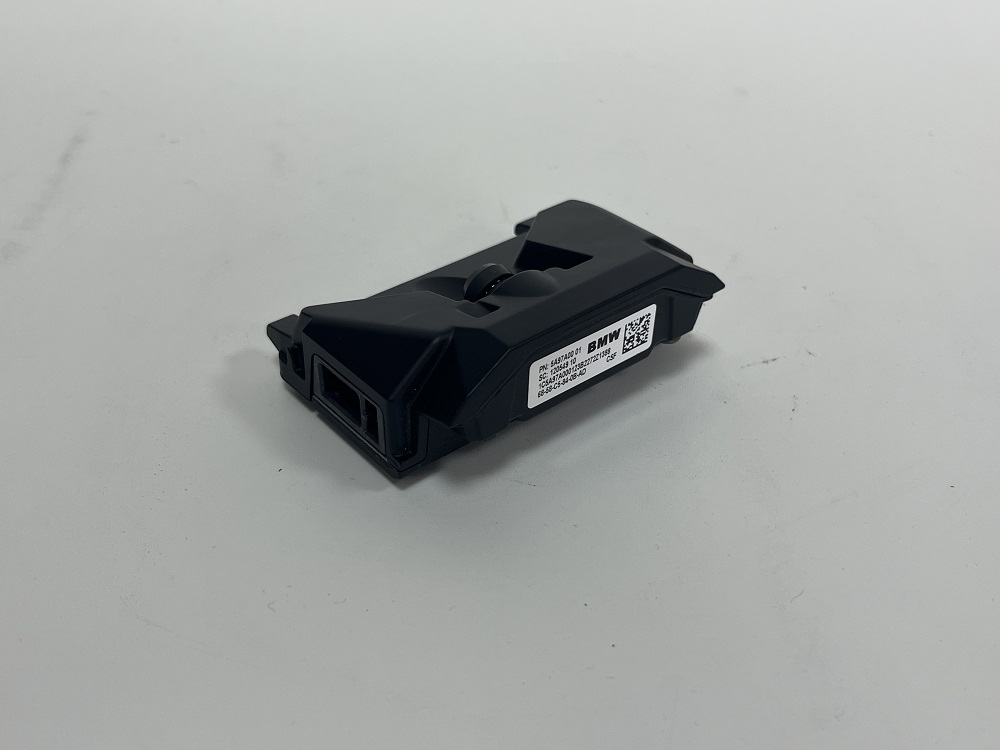

5A97A00 BMW Front Windshield Lane Departure Assist Camera
The BMW Front Windshield Lane Departure Assist Camera (commonly known as KAFAS – Kamera-Assistiertes Fahrerassistenzsystem / Camera-Assisted Driver Assistance System) is a high-precision monocular/stereo optical camera module, OEM-installed behind the interior rearview mirror on the front windshield. It serves as the primary sensor for BMW’s lane departure warning and related driver assistance functions, using advanced image processing to detect road lane markings and vehicle position. This camera is integrated with the vehicle’s central control unit to enable real-time safety interventions.
Core Functionality
- Lane Departure Warning (LDW): Activates at speeds >70 km/h (43 mph); detects unintended lane drift without turn signal activation and alerts via steering wheel vibration (adjustable intensity).
- Lane Keeping Assist (LKA): Provides subtle, corrective steering torque to keep the vehicle centered in the lane (available on higher-spec variants).
- Road Sign Recognition (RSR): Identifies and displays speed limits, no-passing zones, and other traffic signs on the instrument cluster/Head-Up Display.
- Forward Collision Warning (FCW): Detects vehicles, pedestrians, and obstacles ahead; triggers visual, audible, and haptic warnings.
- Automatic High Beam Assist (AHBA): Monitors ambient light and oncoming traffic to automatically switch between high and low beams.
Technical Specifications
- Mounting Location: Behind the interior rearview mirror, front windshield.
- Detection Range: Up to 50 m (164 ft) ahead for lane markings; overall field of view up to 500 m (1,640 ft).
- Operating Conditions: Works in daylight, low-light, and nighttime (with headlights on); functions on curved and narrow roads.
- Integration: Communicates via CAN bus with the DSC, ICM, and KAFAS control unit; supports OTA updates for feature enhancements.
Compatible Vehicle List (Factory-Equipped)
- BMW 3 Series (F30/F31/G20/G21): 2012+
- BMW 5 Series (F10/F11/G30/G31): 2011+
- BMW 7 Series (F01/F02/G11/G12): 2008+
- BMW 8 Series (G14/G15/G16): 2018+
- BMW X3 (F25/G01): 2011+
- BMW X4 (F26/G02): 2014+
- BMW X5 (E70/F15/G05): 2007+
- BMW X6 (E71/F16/G06): 2008+
- BMW X7 (G07): 2018+
- BMW 4 Series (F32/F33/F36/G22/G23/G26): 2013+
- BMW 6 Series (F06/F12/F13/G32): 2011+
