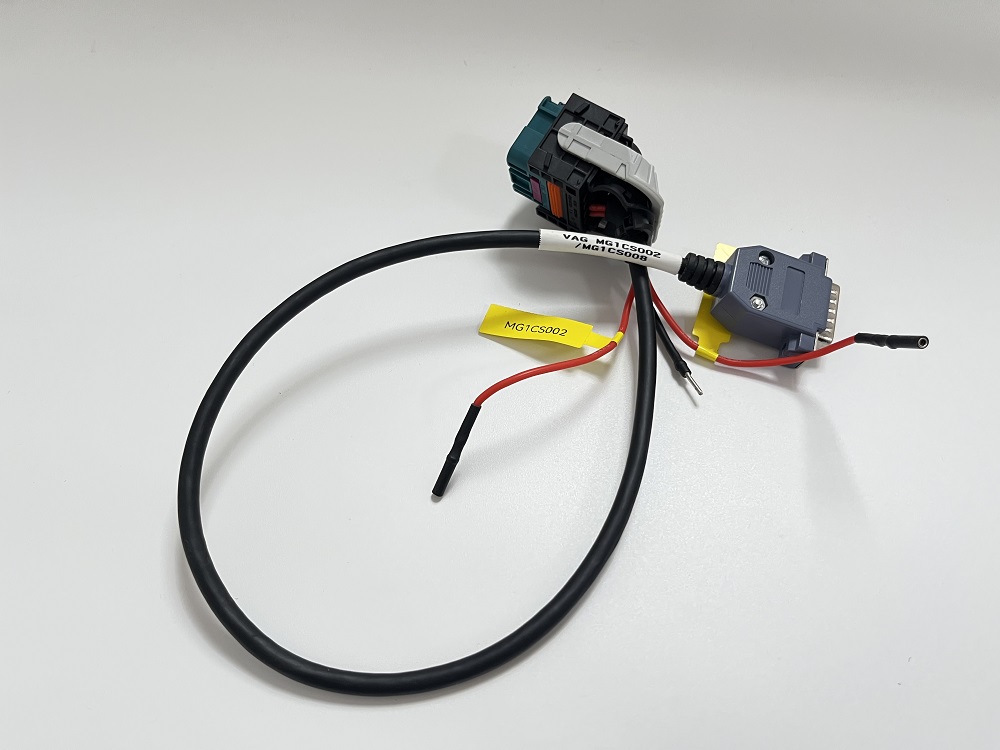

PCM Flash MG1CS002/MG1CS008 ECU/TCU Cable for VW
The PCM Flash MG1CS002/MG1CS008 Cable is a specialized, microprocessor-focused tool designed for advanced bench programming and direct chip access. It targets specific microcontroller units (MCUs) commonly found in Volkswagen Group Engine and Transmission Control Units (ECUs/TCUs), particularly the Infineon SAK-TC2xx (Tricore) family, including the MG1CS002 and MG1CS008 variants.
Key Features & Functions
- Direct Microprocessor Access: Primary function is bench programming via direct connection to the MCU pins (e.g., DAP/JTAG, BDM, DAP MINI WIGGLER). It bypasses the OBD port for low-level chip access.
- Targeted MCU Support: Specifically designed for Infineon Tricore SAK-TC2xx series chips, such as SAK-TC233LP-32F200N AA (MG1CS002) and SAK-TC237LP-32F200N AC (MG1CS008).
- Bootloader & Full Memory Operations: Capable of reading and writing the complete memory content of the MCU, including bootloader, application data, and security sectors. Essential for ECU/TCU cloning, recovery, and advanced tuning.
- Bricked ECU/TCU Recovery: A vital tool for recovering control units that have become unresponsive (“bricked”) due to failed OBD flashes or corruption.
- Security Sector Manipulation: Allows reading and writing of protected memory areas (e.g., OTP, Flash sectors) that are inaccessible via standard OBD tools.
- PCM Flash Software Integration: Used in conjunction with PCM Flash software for handling the binary files, checksums, and project management specific to these MCUs.
Primary Application & Vehicle Compatibility
This is a bench tool for specialists, not a standard OBD cable. It applies to vehicles whose ECUs or TCUs contain the specific supported Tricore MCUs. Compatibility is defined by the hardware chip, not the car model.
| Target MCU | Commonly Found In | Control Unit Examples (VW/Audi) |
|---|---|---|
| MG1CS002 (SAK-TC233LP) |
Older Bosch MED9.x ECUs, Some early Bosch TCUs (e.g., DQ250 02E) | Audi A3 8P (2.0T) ECU, VW Golf GTI MK5/MK6 ECU, DQ250 DSG TCU (certain hw). |
| MG1CS008 (SAK-TC237LP) |
Later Bosch MED17.x ECUs, Some Bosch TCUs for DQ381/DQ500 | Audi S3 8V (EA888 Gen3) ECU, VW Golf R (MK7) ECU, DQ500 DSG TCU (certain hw). |
Note: The same car model can have different ECU hardware. Physical identification of the MCU chip is required.
Critical Note: This is an expert-level tool for bench work only. It requires the ECU/TCU to be removed from the vehicle and opened. Users must have advanced skills in soldering, electronic hardware identification, and an understanding of MCU memory maps. Incorrect use can permanently destroy the control unit.
