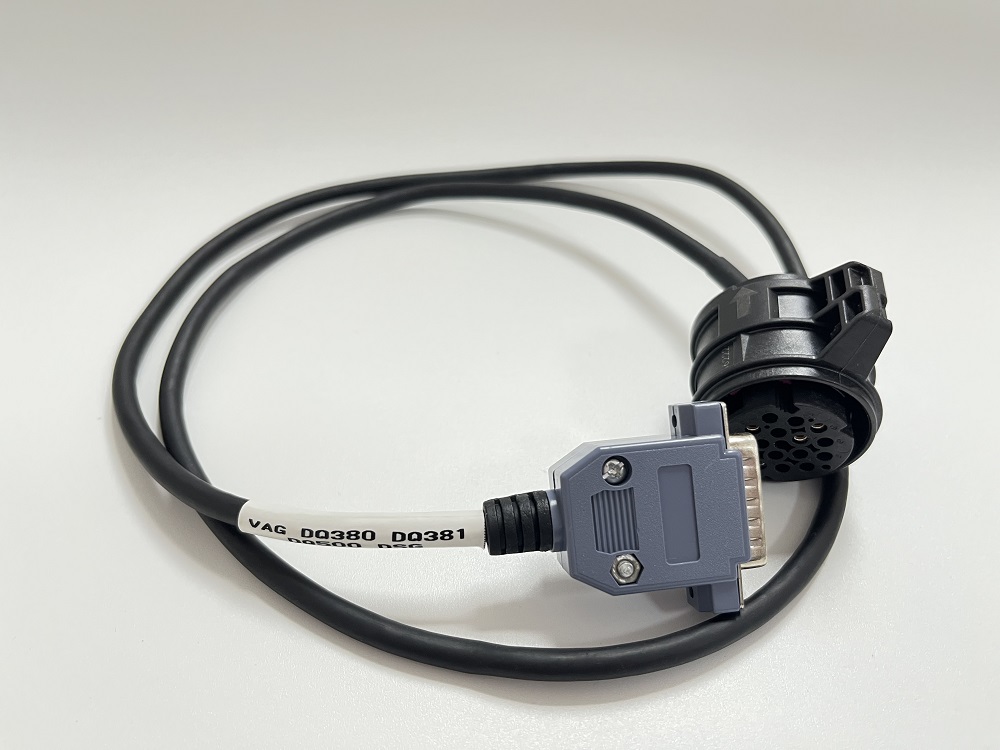

PCM Flash DQ380/DQ381/DQ500 DSG ECU/TCU Cable for VW
The PCM Flash DQ380/DQ381/DQ500 DSG Cable is a comprehensive and professional tuning interface specifically engineered for the widely-used DQ380, DQ381, and DQ500 7-speed direct-shift gearbox (DSG) families from the Volkswagen Group. This tool provides deep-level access to the Transmission Control Unit (TCU) for advanced diagnostics, reading, writing, and performance tuning.
Key Features & Functions
- Multi-Transmission Support: A single cable solution for three major DSG families: DQ380 (0DE), DQ381 (0GC/0GD), and DQ500 (0BT/0DL).
- Advanced TCU Tuning: Unlocks the ability to modify critical parameters such as shift speed, shift pressure, torque limits, launch control, and thermal management for improved performance and responsiveness.
- Full Read/Write & Boot Mode Access: Capable of reading the complete TCU software (including boot sector) and writing tuned files safely via both OBD-II and direct bench programming.
- Integrated BDM/DEBUG Functions: For advanced users, the cable supports direct hardware access (e.g., via BDM100) for complex recovery or tuning procedures on supported TCUs.
- ECU Communication: Often includes functionality to communicate with the associated Engine Control Unit (ECU) for integrated powertrain tuning.
- PCM Flash Software Suite: Works with dedicated software offering powerful map editing, checksum correction, and project management tools.
Primary Application & Vehicle Compatibility
This cable is targeted at a broad range of modern Volkswagen Group vehicles (VW, Audi, Skoda, Seat) with transverse-mounted engines and high-torque DSG transmissions.
-
- DQ380 (0DE): Common in earlier high-performance transverse models.
- DQ381 (0GC/0GD): The upgraded successor to DQ380, featuring improved efficiency and found in many newer models.
DQ500 (0BT/0DL): The heavy-duty variant designed for higher torque applications, often in SUVs and performance models.
| Transmission | Typical Applicable Models | Key Characteristics |
|---|---|---|
| DQ380 / DQ381 | VW Golf R (MK7/MK7.5), GTI Clubsport, Audi S3 (8V), TT S, Skoda Octavia vRS (MQB), Seat Leon Cupra R | Transverse, 7-speed, up to ~420 Nm torque capacity. |
| DQ500 | Audi RS3 (8V), TT RS (8S), VW Tiguan R, Cupra Ateca, Audi S1, certain T6/T6.1 Transporter models | Transverse, 7-speed, heavy-duty, up to ~600 Nm torque capacity. |
Important Note: This is a professional tuning tool. Compatibility must be verified by the specific TCU part number and hardware/software version. It is NOT compatible with longitudinal transmissions (e.g., DL382, DL501) or older 6-speed DSGs (DQ250). Proper knowledge of DSG tuning and flashing procedures is mandatory to avoid transmission damage.
