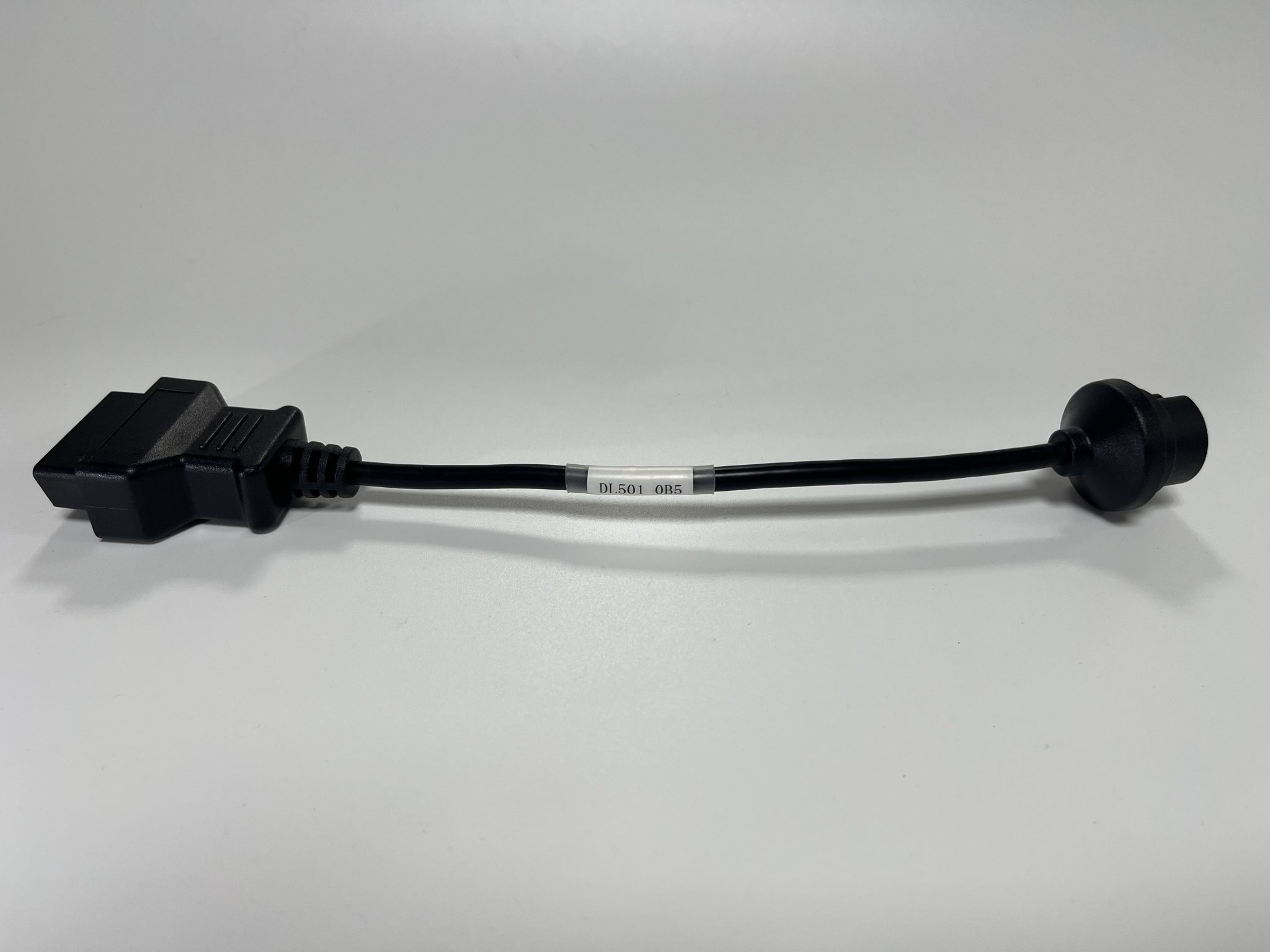

DL5010B5 OBD II Transmission Cable for Audi
The DL5010B5 OBD II Transmission Cable is a specialized, high-performance diagnostic interface designed for Audi vehicles equipped with the S-Tronic 7-speed DL501 (0B5) dual-clutch transmission. This transmission is a robust, wet-clutch unit designed for higher torque applications. The cable provides a direct, stable communication link between the vehicle's sophisticated Transmission Mechatronic Unit and professional diagnostic software (such as ODIS, VCDS, or other Audi-specific systems). It enables access to the full spectrum of advanced functions required for proper maintenance, diagnosis, and repair of this complex Audi transmission.
Key Features & Functions
- Direct Mechatronic Unit Access: Facilitates deep-level communication with the DL501 transmission's control unit for comprehensive system interrogation beyond basic OBD-II.
- Advanced Diagnostics & Live Data: Read and clear transmission-specific fault codes. Monitor extensive live data parameters including clutch pressures, gear oil temperature, valve currents, gear engagement status, and adaptive values.
- Essential Adaptation Procedures: Perform critical basic settings such as clutch adaptation and pressure control valve adaptation, which are mandatory after repairing or replacing the mechatronic unit, clutch packs, or performing a transmission oil change.
- Control Unit Coding & Programming: Code new or replacement mechatronic units to the vehicle's specific configuration and perform software updates/flashing.
- Longitudinal Transmission Support: Specifically engineered for Audi's longitudinal engine platform transmissions, ensuring correct pinout and protocol communication.
- Professional Software Integration: Compatible with official Audi diagnostic engineering (ODIS) and leading third-party tools for complete workshop functionality.
Compatible Vehicle Models
This cable is designed for Audi models with a longitudinal engine layout and the 7-speed S-Tronic DL501 (gear code 0B5) transmission. Common applications include:
- Audi A4 (B8, B8.5, B9 – specific high-power models) e.g., 3.0TDI, 3.0TFSI, S4
- Audi A5 (8T, F5 – specific models) e.g., 3.0TDI, S5, RS5 (pre-2017)
- Audi A6 (C7, C8 – specific models) e.g., 3.0TDI, 3.0TFSI, S6
- Audi A7 (4G, 4K – specific models) e.g., 3.0TDI, S7
- Audi Q5 (8R, FY – specific models) e.g., 3.0TDI, 3.0TFSI, SQ5
- Audi Q7 (4L – specific models with the 0B5)
- Note: Compatibility is dependent on the specific transmission gearbox code 0B5. Always verify the vehicle's PR code or transmission identification before use.
