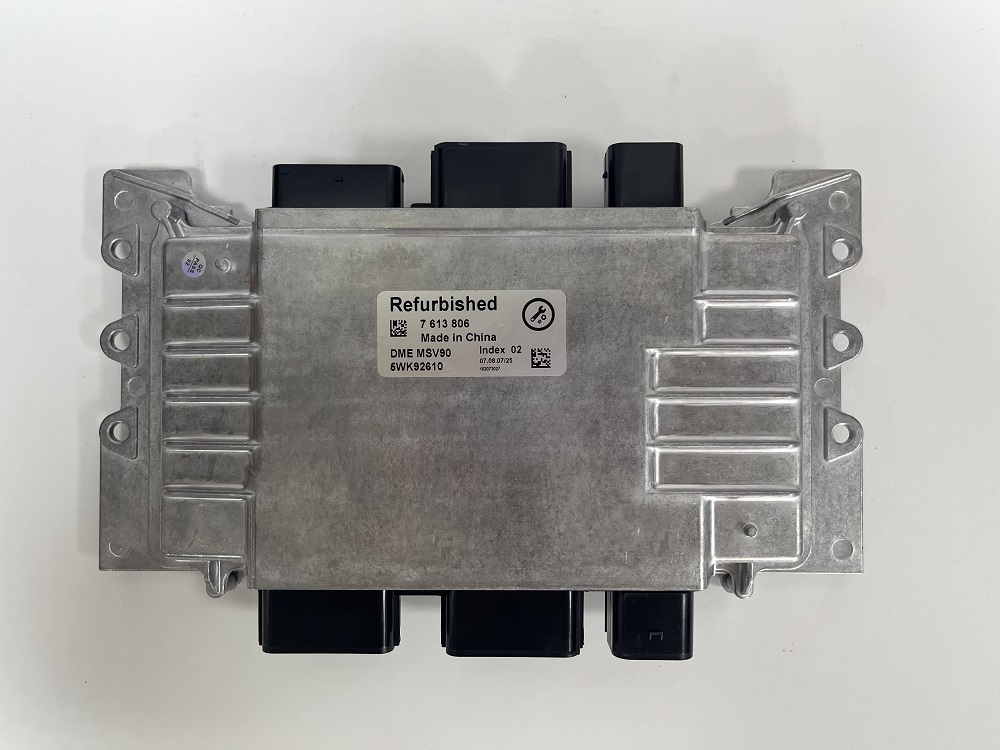

BMW MSV90 DME ECU Engine Control Module 5WK92610

The BMW MSV90 DME (Digital Motor Electronics) ECU, bearing part number 5WK92610, is a critical engine management component for modern BMW vehicles. As the central computing unit for the engine, it precisely governs combustion parameters to optimize performance, efficiency, and emissions. This specific variant of the MSV90 module represents a key iteration in BMW's engine control technology, designed for reliability and integration with the vehicle's broader electronic systems.

Functional Description

• Core Engine Management: Controls fuel injection timing, duration, and ignition timing for optimal combustion.
• Variable Valve Technology: Manages VANOS (variable camshaft timing) and Valvetronic (variable valve lift) systems.
• Boost Pressure Control: Regulates turbocharger actuators and wastegates in turbocharged engines.
• Emission Compliance: Monitors and controls exhaust aftertreatment systems (e.g., oxygen sensors, catalytic converters) to meet emission standards.
• Diagnostics & Monitoring: Performs continuous system checks, stores fault codes (OBD2), and manages limp-home modes.
• Vehicle Integration: Communicates with other control units (transmission, chassis, etc.) via CAN, LIN, and FlexRay networks.
• Immobilizer Interface: Works in conjunction with the key and central body/access module for secure vehicle start.

Required Tools and Software

• Diagnostic Scanners: Professional-grade tools like BMW ISTA (Diagnostic), Autel MaxiSys, Launch X-431, or ODIS.
• Programming Interface: ICOM Next A/B/C or compatible J2534 pass-through device (e.g., from Drew Technologies, Bosch).
• Software Suite:
  • BMW ISTA/P: Primary software for programming (flashing), encoding, and integration (retrofit) of the DME.
  • ESYS: Often used for advanced coding and parameterization.
• General Tools: ESD (Electrostatic Discharge) protection equipment, automotive multimeter, oscilloscope for signal analysis, and standard mechanical tools.

Applicable Vehicle Models

The MSV90 DME with part number 5WK92610 is commonly found in a range of BMW models, primarily those equipped with specific modular engines. Always confirm compatibility using the vehicle's VIN.

• • BMW 1 Series: F20, F21 (certain engine variants)
  • BMW 2 Series: F22, F23 (Coupe & Convertible)

• BMW 3 Series: F30, F31, F34 (GT) with specific engine codes
• BMW 4 Series: F32, F33, F36 (Gran Coupe)
• BMW X1: F48
• BMW X3: F25 (later production)
• Note: Typical engine families associated with this ECU include the B38 (3-cylinder), B48 (4-cylinder), and B58 (6-cylinder) modular engines. Production years are typically in the mid-to-late 2010s.
