Autel BT508 for iOS and Android Devices

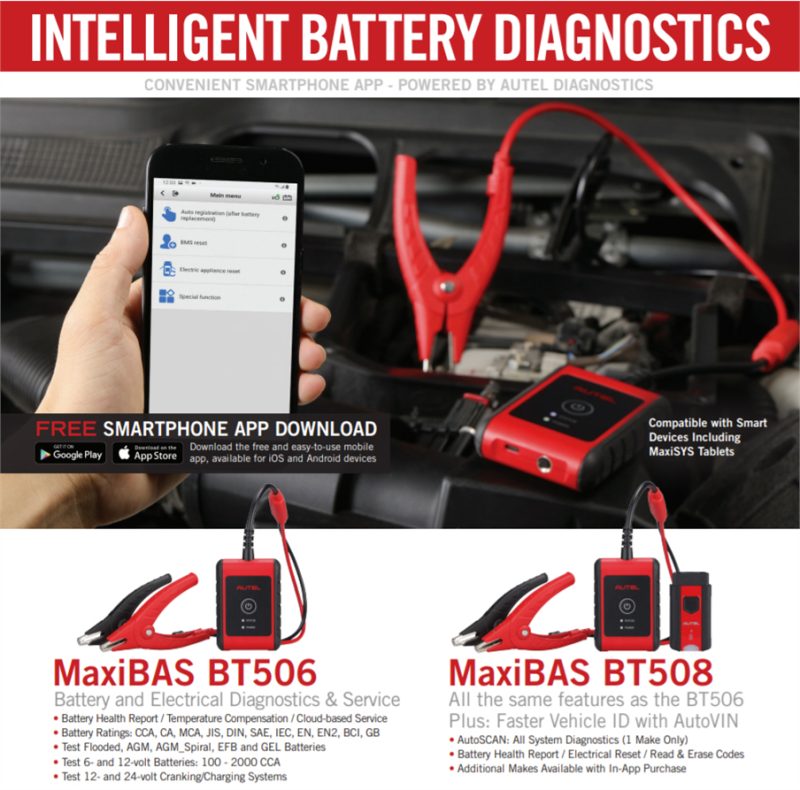

Use your iOS and Android devices with the Autel MaxiBAS BT508 to perform battery and electrical system tests. The BT508 uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health.
The BT508 does not have a screen! To perform testing and display test results, the BT508 must be used with a smart device that runs iOS or Android (coming soon) apps available.
- Includes a Wireless Bluetooth Vehicle Communication Interface for Battery and Electrical Component Registration*
- Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
- Test 6- and 12-volt batteries: 100 – 2000 CCA
- Test 12- and 24- cranking/charging systems
- Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
- Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS, and MCA
- Illustration instruction guides for battery positioning and testing
- Read and erase codes of all available systems*
* Includes 1 manufacturer for free (1-year subscription) Additional manufacturers and additional years of subscription are available through the app. iOS and Android app purchases do not cross over between platforms.
Specifications
Connectivity: USB 2.0, Type C and Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: < 150 mA at 12 V DC
Internal Battery: N/A
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10°to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight: 320g (0.7 lb.)
The BT508 is not compatible with the Autel BTAK Battery Tester Accessory Kit.
Package Contents
- MaxiBAS BT508 unit with Battery cable (approx 2-ft long) with Large Clamps (low profile) and temperature sensor
- wireless Bluetooth MaxiVCI V200P
- Quick Start Guide (QR code links to app)
- Free updates
